High-quality Fully Automatic Cnc Paper Tube Precision Cutting Machine
1.Product introduction of Fully Automatic Cnc Paper Tube Precision Cutting Machine:
The fully automatic paper tube slitting machine is a modern paper product processing equipment integrating intelligent control, automatic operation, and high-precision cutting. It is specifically designed for fixed-length slitting of various paper tubes and cores, and is widely adaptable to the production needs of packaging, textiles, printing, building materials, and other industries.Core Functions
• Fully Automated Process: Equipped with an automatic feeding, positioning, slitting, and unloading system, it operates through the coordinated action of a drive motor, hydraulic rod, and threaded rod, eliminating the need for continuous manual intervention and significantly reducing labor costs.
• High-Precision Slitting: Utilizing a servo motor drive and precision ball screw structure, combined with a tungsten steel cutter and semi-circular slitting groove positioning, the cutting accuracy reaches ±0.05mm (5 microns), resulting in a smooth, burr-free end face.
• Flexible Adaptability: Supports slitting requirements for paper tubes with an inner diameter of 25.4-152mm and a wall thickness of 3-15mm. Ten different widths can be set via a PLC touchscreen, with a minimum cutting width of only 3mm. Both the cutter and spindle support frequency conversion speed regulation.
• Intelligent Control: Integrates cutting count, speed display, and fault warning functions, supporting both centralized PLC touchscreen control and manual control modes for precise "what you see is what you get" operation.
• Applicable Fields: Covers the processing of various products including food packaging tubes, textile film cores, fire-resistant paper tubes for building materials, medical lining tubes, and decorative paper tubes; can cut paper tubes/PVC tubes/adhesive paper tubes/nylon tubes, etc.
2.Technical parameters & Quotation of Fully Automatic Cnc Paper Tube Precision Cutting Machine：
Semi-Automatic one：
Paper Tube Cutting Machine Video:
https://www.youtube.com/shorts/RaFjDDaVVA0?feature=share
|
Model |
WM-QZX3 Manual Paper Core Cutting Machine |
|
Power |
550W |
|
Voltage |
220V/6.5A |
|
Speed |
1400r/min |
|
Other Details |
The total length of the PP rod is 420mm, the effective length of the paper tube cut out is 410mm, and the length of the paper tube material cut is <2000mm Spot PP rod (bearing) sizes: 76mm (3 inches), 40mm (1.6 inches), 38mm (1.5 inches), 25.4mm (1 inch) |
|
Dimension |
640*310*760 mm |
|
Machine Weight |
40kg |
Automatic one
Paper Tube Cutting Machine Video:
https://www.youtube.com/shorts/yI6hLSz3kmw?feature=share
|
Model |
WM-QZX500 |
|
Paper Tube Inner Diameter |
3 inches (optional 1 inch, 1.5 inches, 1.6 inches) |
|
Effective Distance For Cutting Paper Tubes |
510mm (adjustable to 530mm) |
|
Can Be Mounted On Paper Tube Length |
within 3 meters (recommended within 1 meter) |
|
Applicable Paper Tube Thickness |
2-8mm |
|
Cutting Speed |
1-10 times/minute |
|
Cutting Width |
18mm-530mm adjustable (standard 6 sets of knives) |
|
Voltage and Power |
380V, 2.2KW |
|
Dimension |
1330*700*900mm |
|
Machine Weight |
310KG |
This one is doing according to one customer required the length to be 1.5MSemi-Automatic one:
Paper Tube Cutting Machine Video:
https://www.youtube.com/shorts/8RCsYOgPMvM?feature=share
|
Model |
Detailed parameters |
|
WM-ZQG150 |
Overall machine length: 2200*410*900mm Machine weight: 150KG Effective paper tube cutting length: 1500mm Power: 1.1kw Motor: Pure copper motor Configuration: 3-6 inch differential rings, a full 3-inch nylon blade pad + two 6-inch nylon blade pads, ruler, movable blade holder, cylinder, foot switch |
This one is doing according to one customer required the length to be 1.4M
Automatic one:
Fully Automatic Paper Tube Precision Cutting Machine Video:
https://youtube.com/shorts/HFOaa18kPH4?feature=share
|
Model |
Detailed parameters |
|
WM-SQ1400 |
Length: 1400mm Inner Diameter: 3 inches / 6 inches Cutting Thickness: 3-20mm Number of Cutters: Tube Rotary Cutting Method: Automatic Loading/Unloading Method: Automatic Feed Method: Automatic Number of Operators: 1 person can operate multiple units Speed Control: Sifu Servo Motor: Dongling PLC Controller: Xinje HMI: Xinje Actuator: Delixi Signal Components: Omron Pneumatic Components: Airtac Main Power: 3.7kw Lead Screw: HIWIN Cutting Blade: Alloy Cutting Length: 10-1400mm Dimensions: 3.5*1.38*1.49M Weight: 600KG |
|
WM-ZQG160 |
Feeding method: automatic Paper tube discharging: automatic Paper tube positioning way:CNC stepping ystem Active knife: Yes Paper tube length:2000mm Paper tube diameter:30-160mm Minimum finished tube length:55mm Paper tube wall thickness:6-12mm Maximum number of cutters available:10 Production efficiency:5-7pcs/min Cutting precision:<0.5mm |
Contact Us to Get a Quote

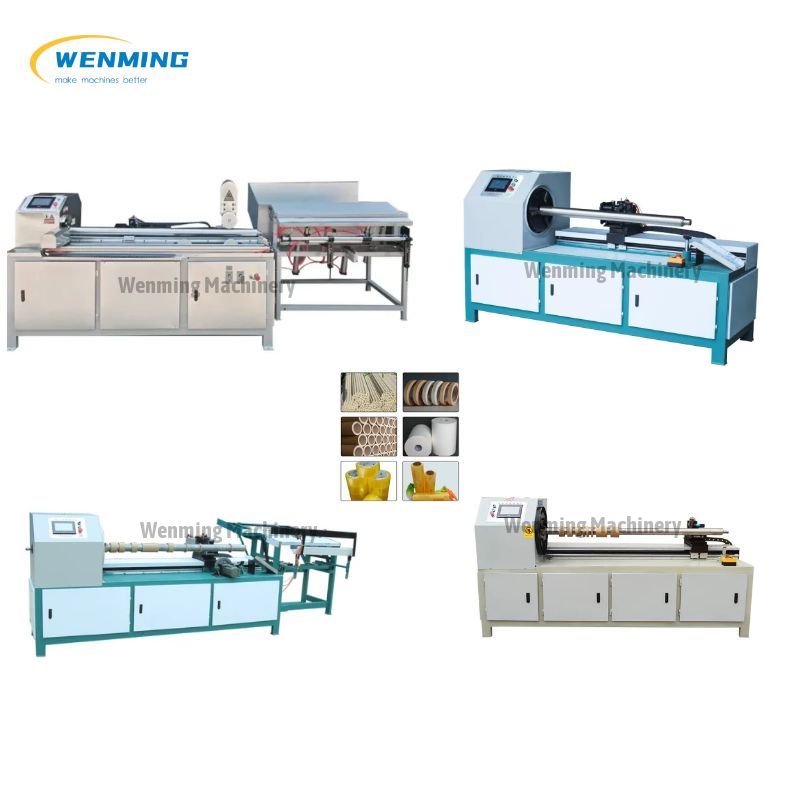

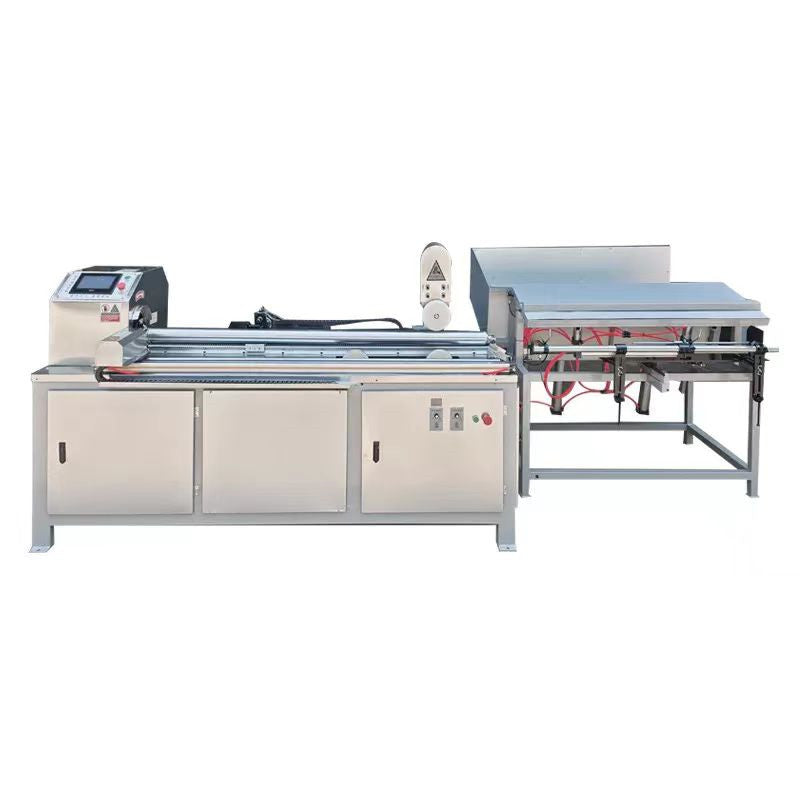

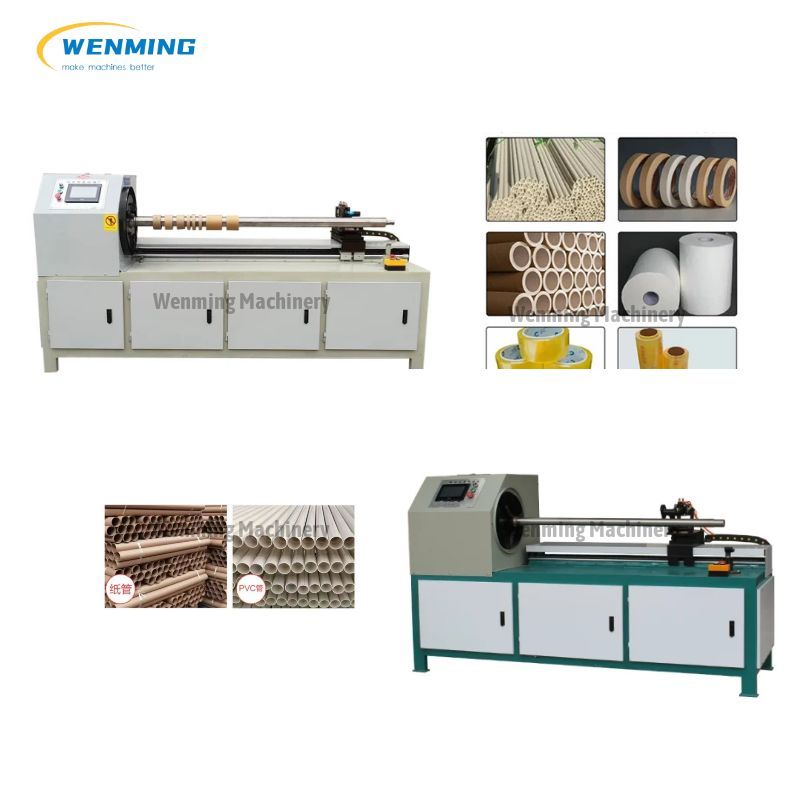

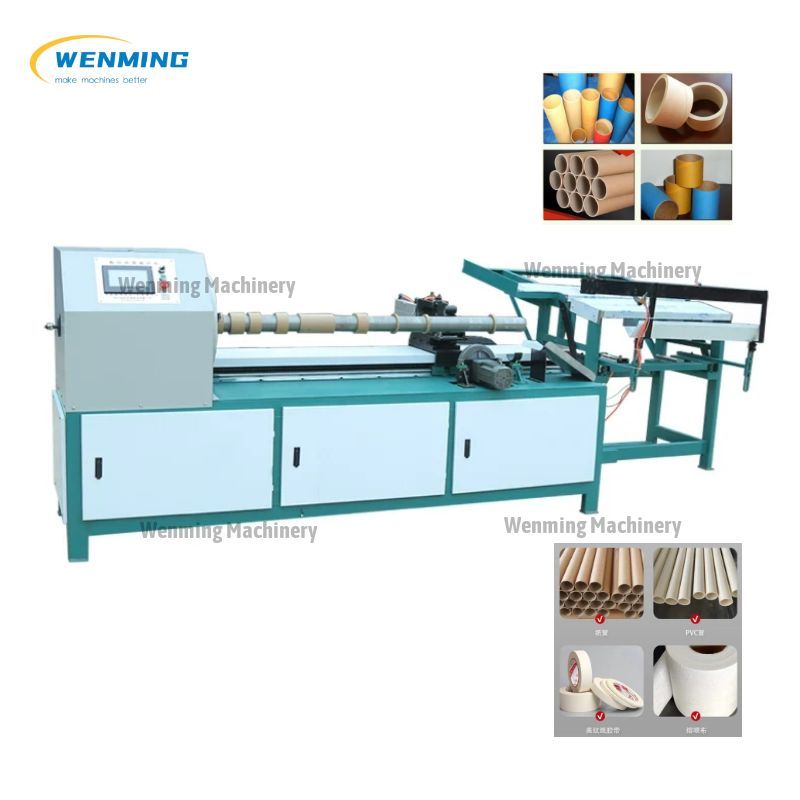

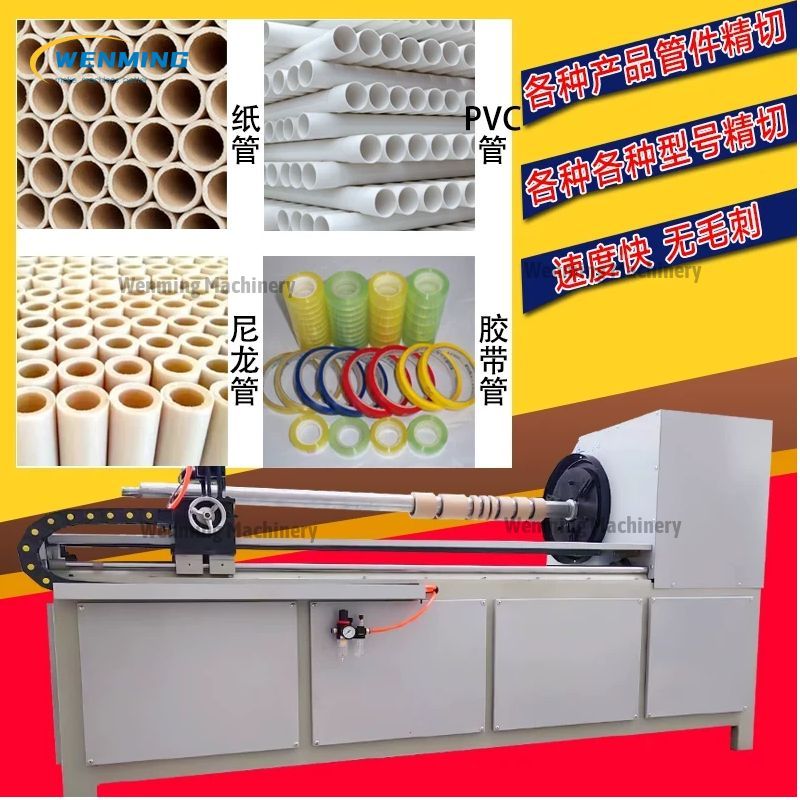

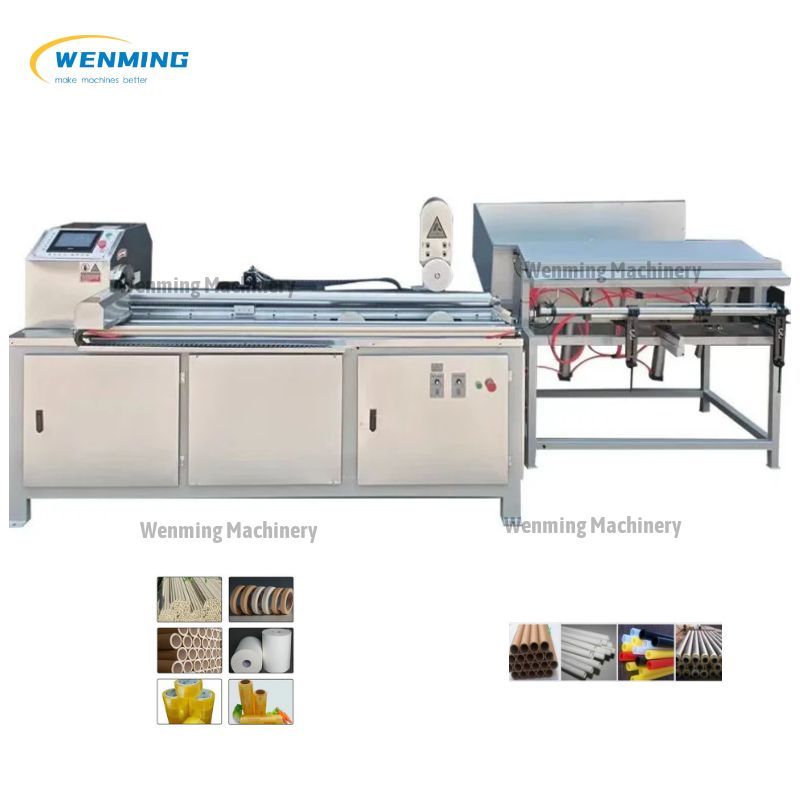

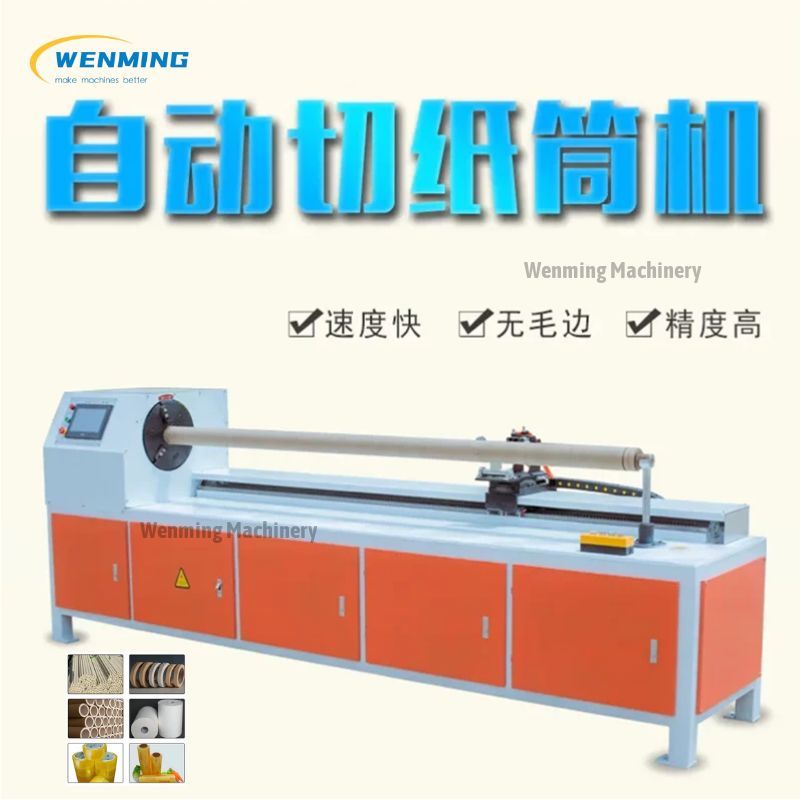

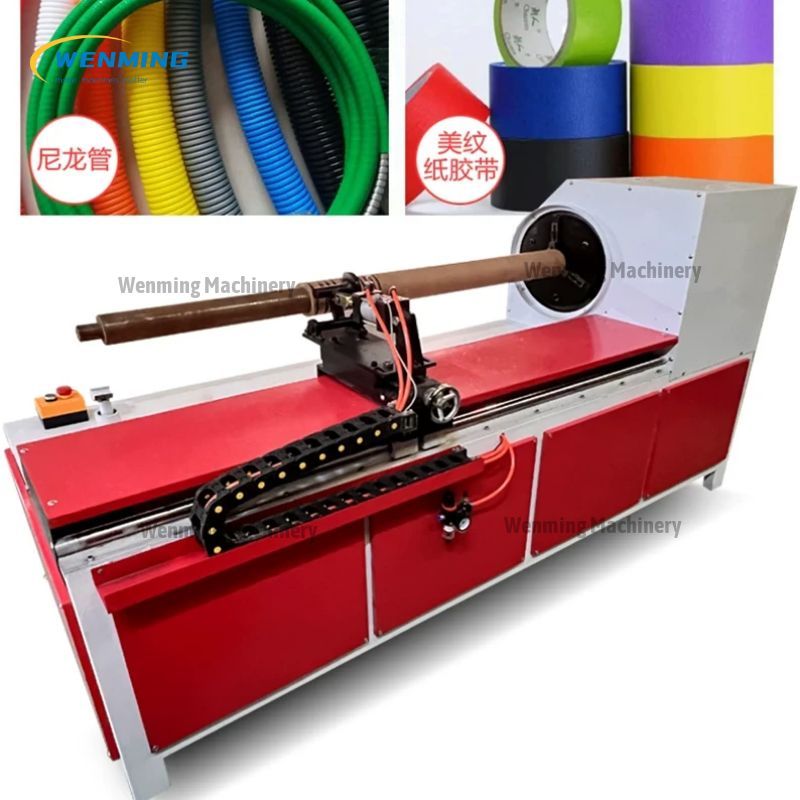

3.Pictures of Fully Automatic Cnc Paper Tube Precision Cutting Machine:
 |
 |
 |
 |
 |
 |
