High Quality Self-service Helmet Dry Cleaning Machine and Customized Helmet Cleaning Machine
1.Product introduction of Self-service Helmet Dry Cleaning Machine :
The self-service helmet dry cleaning machine primarily provides riders with a convenient helmet cleaning service. It uses dry cleaning or micro-steam technology to clean, sterilize, and deodorize the inner and outer surfaces of the helmet with little or no water. The machine is usually equipped with a touchscreen and multiple payment methods, supporting 24-hour self-service.
The machine completes the helmet care process through a series of automated steps, the main steps of which are as follows:
1. Selection and Payment: Users select a cleaning mode on the touchscreen and complete payment via coins, banknotes, QR codes, or card swiping.
2. Helmet Placement: After successful payment, the compartment door opens automatically. Users place the helmet on the internal rotating tray or clamping assembly. The machine automatically detects whether the helmet is placed correctly and then closes the compartment door.
3. Cleaning and Disinfection: After startup, the machine performs the following core processes:
· Spray Cleaning: Spraying atomized cleaning liquid or high-temperature steam onto the inner and outer surfaces of the helmet to remove dirt. • Sterilization and Deodorization: Utilizes ultraviolet (UV) light or high-temperature steam for deep sterilization and odor removal.
• Rotation and Flipping: During the cleaning process, the helmet rotates and flips in multiple dimensions to ensure thorough cleaning.
4. Drying: Finally, a 40-60°C heated air system thoroughly dries the helmet, preventing residual moisture.
2.Technical parameters & Quotation of Self-service Helmet Dry Cleaning Machine :
|
Model |
Detailed Parameters |
|
WM-TKX-1 |
Screen：15.6-Inch Definition Touch Screen Advertisement：System AdvertisementCustomization Payment Method：QR Code Payment/Swipe Card/Cash Insertion Language：Support CustomizationStandard-English Disinfection Method UV UItraviolet Radiation Cleaning Chamber A/B Chamber Cleaning Method Standard /Fine Washing Power Single Chamber 1100W Standby 40W Size：Single Chamber N.W. : About 85 Kg Machine: 550(L)*650(W)*1790(H) Cleaning Fluid: 5kg Clean Mode： Normal cleaning (7 minutes)advanced cleaning (12 minutes)supports custom mode time |
|
WM-TKX-2 |
Screen：15.6-Inch Definition Touch Screen Advertisement：System AdvertisementCustomization Payment Method：QR Code Payment/Swipe Card/Cash Insertion Language：Support CustomizationStandard-English Disinfection Method UV UItraviolet Radiation Cleaning Chamber A/B Chamber Cleaning Method Standard /Fine Washing Power Double Chamber 2100W Standby 40W Weight Double Chamber N.W. : About 105 Kg Wooden Carton: 750(L)*750(W)*1980(H) Wooden Carton : About 30kg Cleaning Fluid: 5kg Clean Mode： Normal cleaning (7 minutes)advanced cleaning (12 minutes)supports custom mode time |
|
WM-TKX-3 |
Single-Door Helmet Sterilizer Overall Dimensions: 660 W*1966 H*600 D Power Supply: 220V/50Hz Rated Power: 2100W Touchscreen: 12.1-inch touchscreen Network Mode: Wi-Fi/4G Payment System: Card reader, coin acceptor Operating System: Android Sterilization Method: Steam/UV lamp Drying Method: PTC heating Sterilizer Volume/Quantity: 5L/1 Perfume Bottle Capacity: 450ml Number of Perfume Bottles: 4 Number of Doors: Single compartment door Number of Fragrances: Four types of perfumes Door Closing Mode: Magnetic lock Management Platform: SaaS IoT Cloud Remote Management System |
|
WM-TKX-4 |
Single-Door Helmet Sterilizer Frame Dimensions: 650mm (W) x 2025mm (H) x 600mm (D) Power Supply: 220V/50Hz Rated Power: 2100W Operating Interface: 15.6-inch Touchscreen Network Mode: Wi-Fi/4G Payment System: Card reader, coin acceptor Operating System: Android Disinfection Method: Steam/UV lamp Drying Method: PTC heating Disinfection Dosage: 5L Perfume Bottle Capacity: 450ml/bottle Number of Perfume Bottles: 4 bottles Number of Doors: 2 compartments Number of Fragrances: Four types of perfumes Door Closing Mode: Magnetic lock Management Platform: SaaS IoT Cloud Remote Management System |
Contact Us to Get a Quote
Zhengzhou Wenming Machinery Co.,Ltd
Address: Waibao Industrial Park No. 139 Yangjin Road Jinshui District Zhengzhou City, Zhengzhou, Henan, China.
Office:0086-13-303-831586

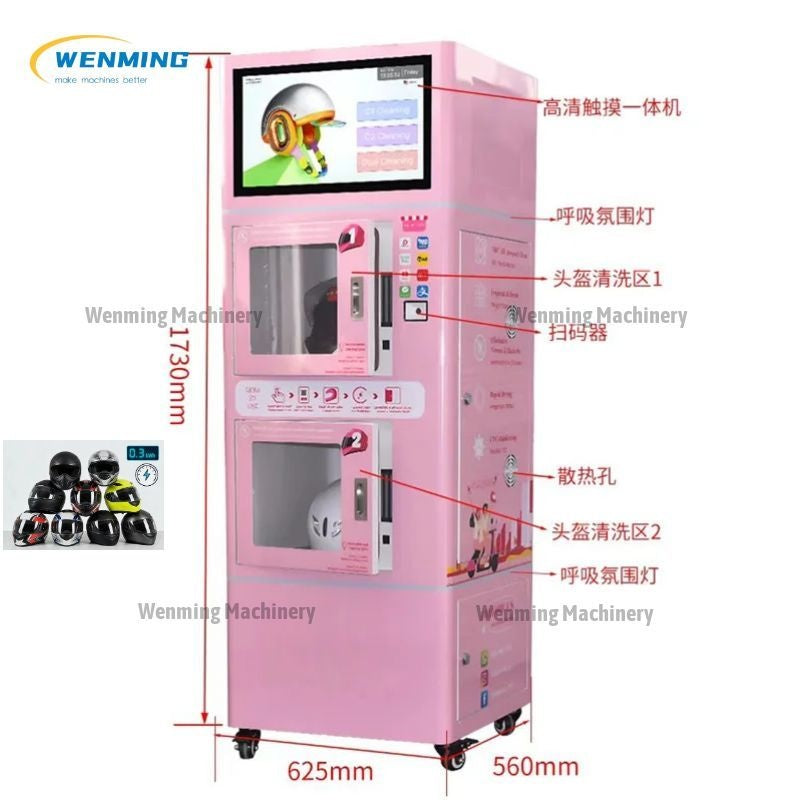

3.Pictures of Self-service Helmet Dry Cleaning Machine :
 |
 |
 |
 |
 |
 |
