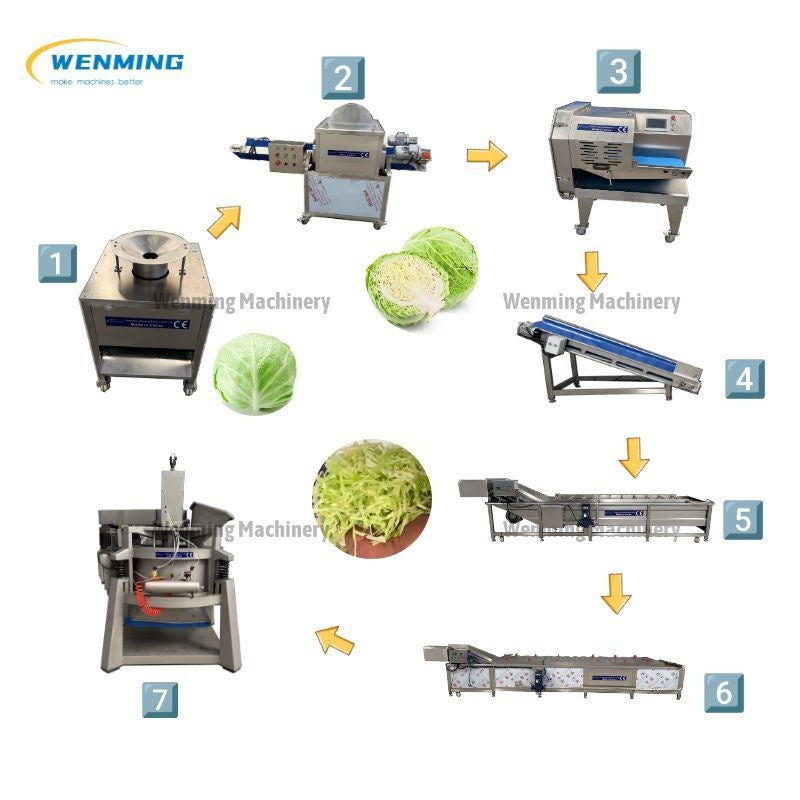

Factory Price Fruit And Vegetable Processing Line Customizable

Name

Equipment parameters

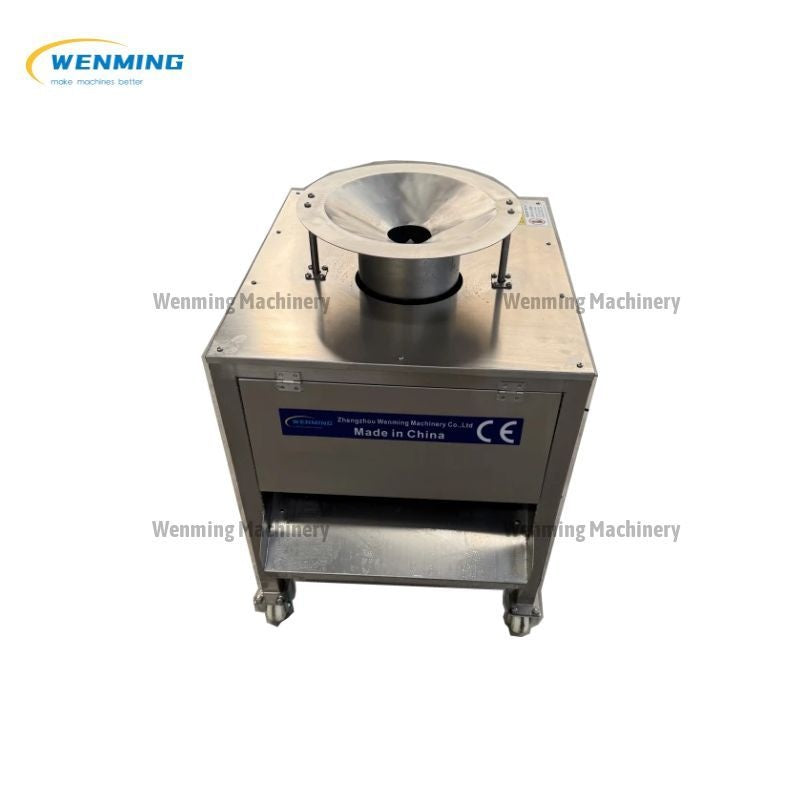

Cabbage core remover

Application:This machine is designed for cabbage core removal. After coring, the cabbages are manually sorted before proceeding to the next step of halving.

Dimensions:680*720*800mm Voltage:380V,50hz,three phase

Power:0.75kw

Material:304SUS

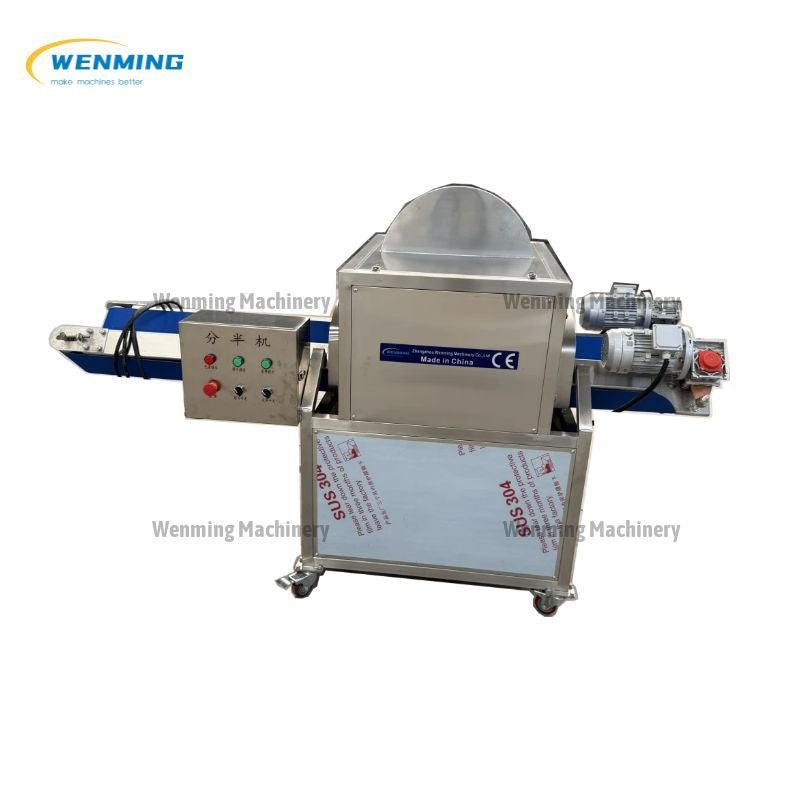

Cabbage halving machine

Application:To cut halved cabbages after removing the core, and then proceed to the next step of shredding.

Dimensions:2200*900*1350mm

Conveyor Belt Length: 2000mm

Cutting Diameter: 3-10cm

Cutter Diameter: 520mm

capacity: 500-1000kg/h

Voltage:380V,50Hz, Three-phase

Power: 2.25kW

Material: 304 SUS

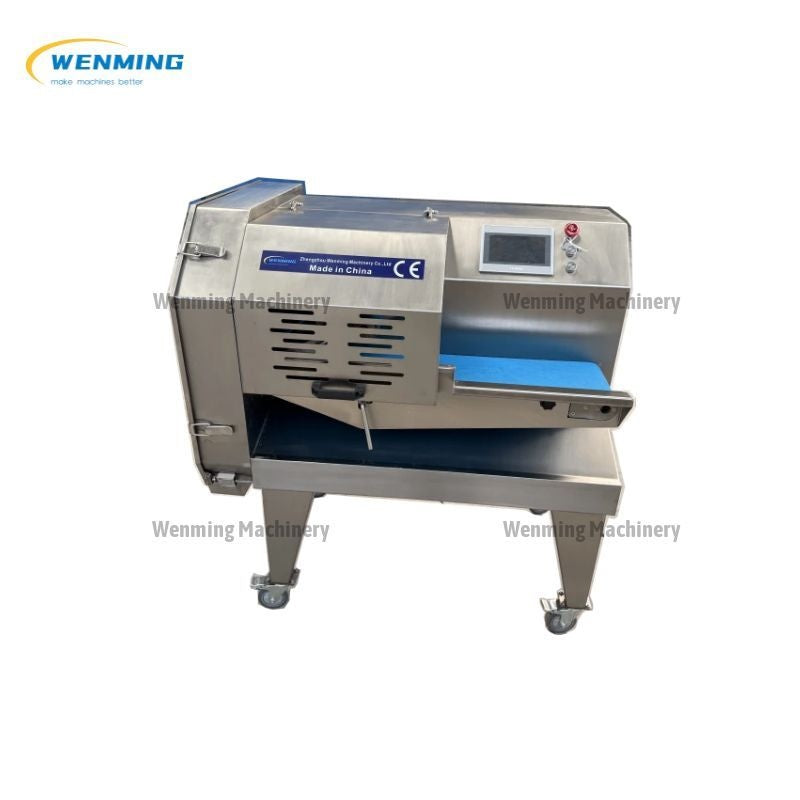

Cabbage shredder

Application: Shredding cabbage. The shredded cabbage is then lifted out by a conveyor belt.

Dimensions: 1300*750*1200mm

Voltage:380V/50Hz, Three-phase

Power: 1.5kw

capacity: 1000kg/h

Wide Belt Dimensions: 200mm

Material: 304 SUS

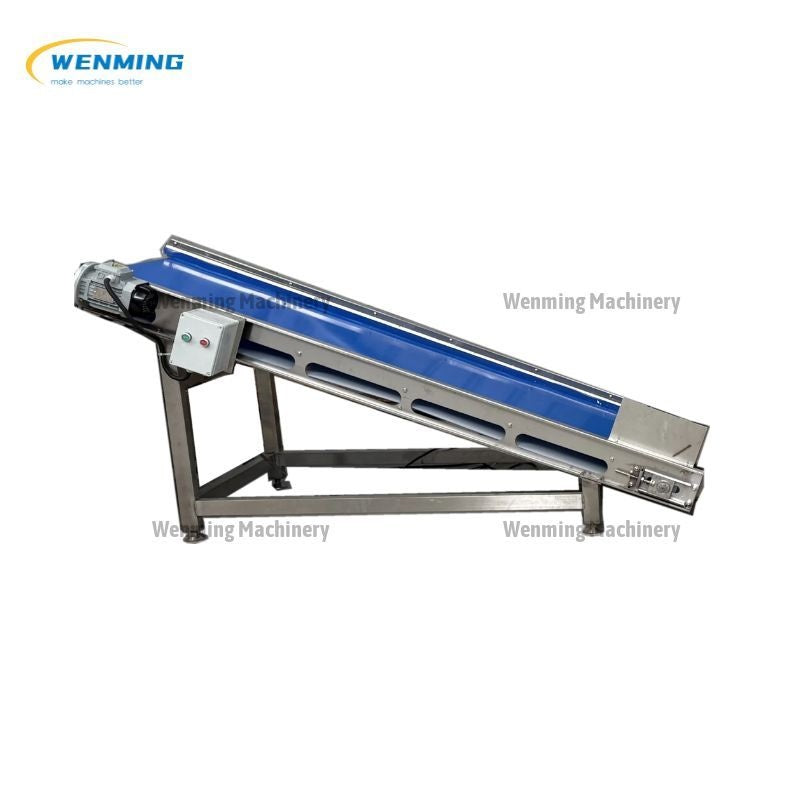

Hoist

Application: The elevator lifts chopped vegetables into the washing machine for the next washing process.

Dimensions: 2000*800*1500mm

Voltage: 380V/50Hz Three-phase

Power: 0.75kW

Belt Width: 500mm

Material: SUS304 SUS

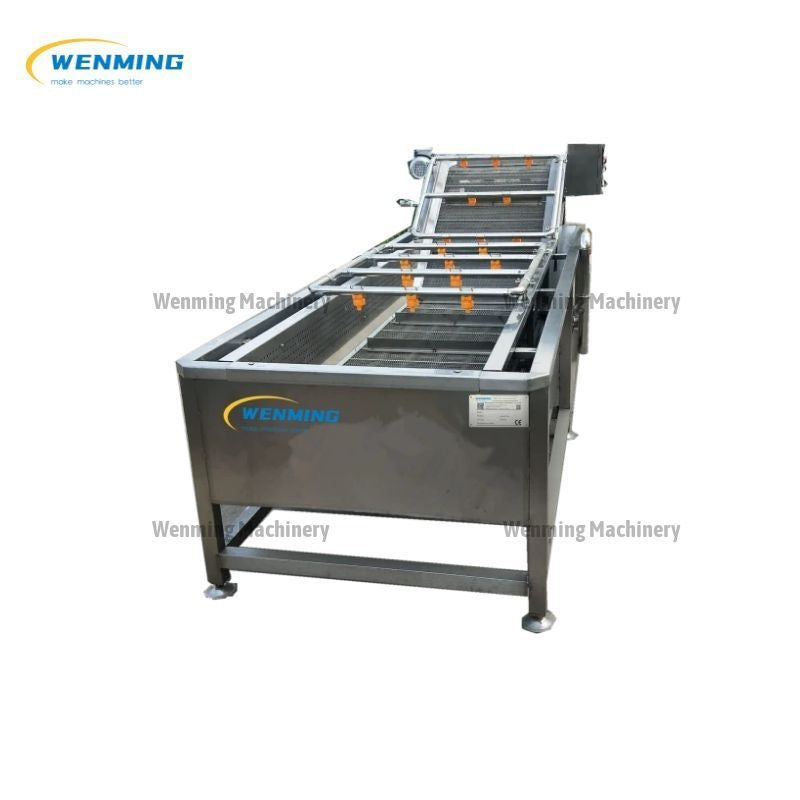

Cleaning machine

Application: This equipment consists of a bubble cleaning section, tank, lifting section, air pump, water pump, overflow port, and other main parts. After cleaning, the material is lifted out of the inner tank and enters the next process.

Dimensions:5000*1400*1300mm

Voltage: 380V/50Hz, three-phase

Air pump power: 2.0KW

Water pump power: 0.75KW

Stainless steel pump head conveying power: 1.1KW

Conveying speed: Variable frequency adjustable

Effective conveyor belt width: 800mm

Materials: SUS304

Steamer

Application: This equipment is used for blanching or steaming cleaned materials.

Dimensions:6000*1200*1300mm

Voltage:380V/50Hz, Three-phase

Conveying Power: 1.1KW

Conveying Speed: Variable Frequency Adjustable

Heating Method: Steam

Gas Consumption: 0.3Mp (0.3T/h)

Temperature: Adjustable from ambient temperature to 100℃

Effective Conveyor Belt Width: 800mm

Chain Plate Mesh Belt Material: SUS304 Stainless Steel

Material: SUS304

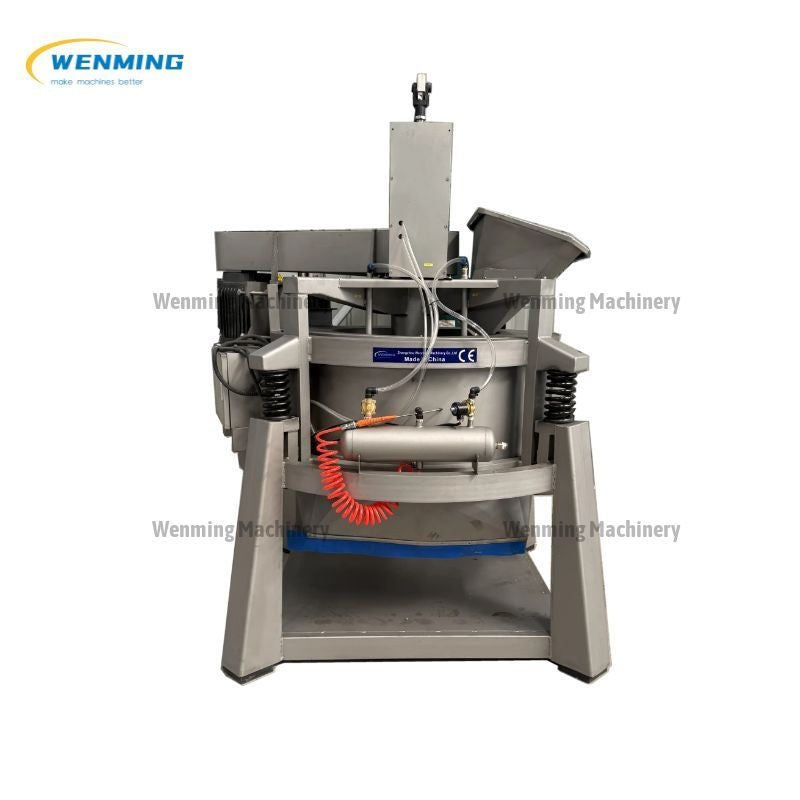

Fully automatic dehydrator

Applications:Used for dehydrating washed vegetables.

1.Spinning drum diameter: 900mm

2.Spinning drum orifice diameter: 2-8mm (customizable)

3.Speed:1188rpm/variable frequency speed control motor (adjustable according to material type)

4. Cycle time: Approximately 40 seconds to 1 minute (adjustable according to material type)

5.Capacity: 3000-5000 kg/h

6.Voltage:380v,50hz,three phase

7. Power: 18kw

a. Fully automatic spinner: 15KW

b.Feeding conveyor elevator: 1.5KW

c.Discharge conveyor elevator: 1.5KW

8. Total line weight: ≈1850KG

9.Dimensions:6000*2000*2400mm

a. Fully automatic water spinner: 2000*2000*2400mm

b.Feed conveyor elevator: 3000*1050*2200mm

c. Discharge conveyor elevator: 2000*1350*1450mm
